SC05-11YWA【PDF 1/6 页】DISPLAY 590NM YLW ALPHANUM 0.5"

SPEC NO: DSAD2280 REV NO: V.10 DATE: MAR/31/2011

PAGE: 1 OF 6

APPROVED: WYNEC CHECKED: Joe Lee DRAWN: J.Yu

ERP: 1301000739

12.7mm (0.5INCH) SINGLE DIGIT NUMERIC

DISPLAY

Part Number: SC05-11YWA Yellow

Features

』

0.5 inch digit height.

』

Low current operation.

』

Excellent character appearance.

』

Easy mounting on P.C. boards or sockets.

』

Mechanically rugged.

』

Standard : gray face, white segment.

』

RoHS compliant.

Description

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

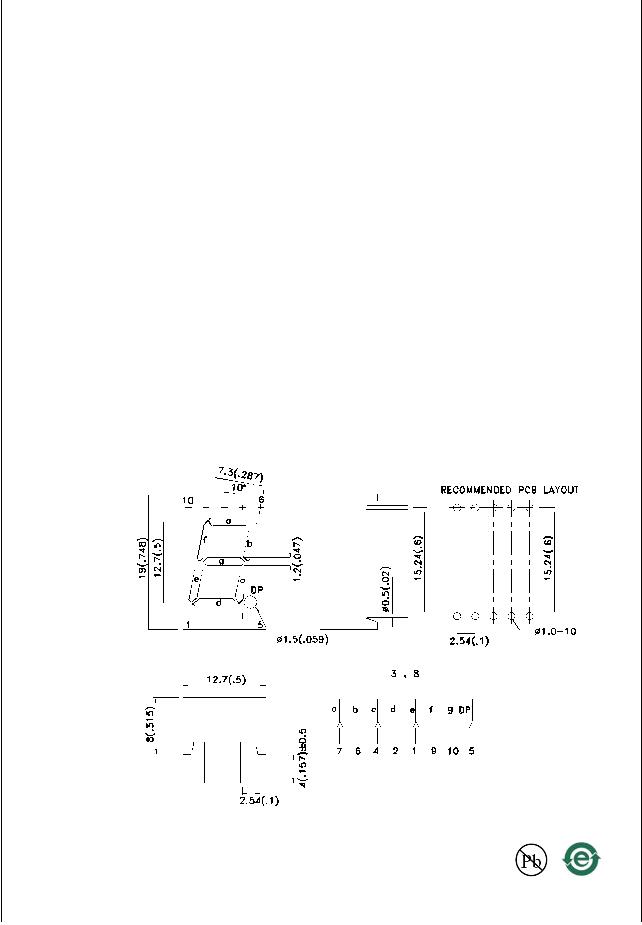

Package Dimensions& Internal Circuit Diagram

Notes:

1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.

2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
